Details

Processing Materials

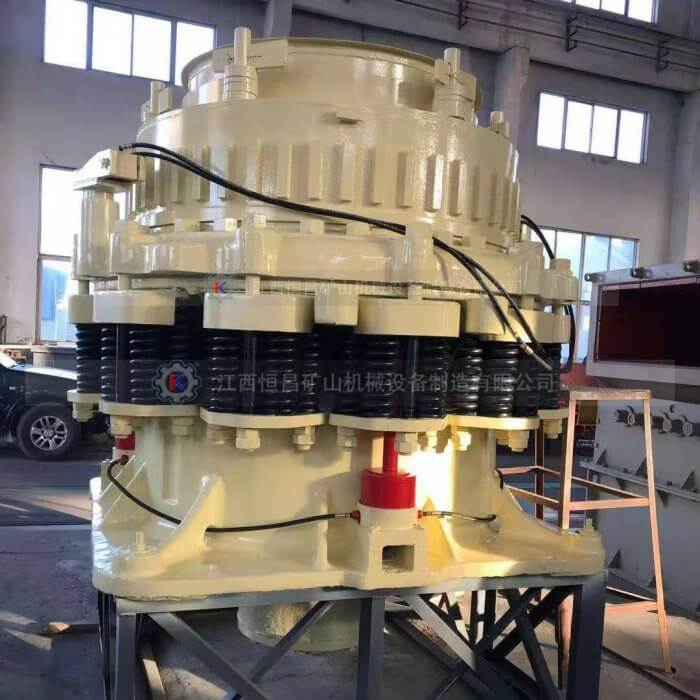

Cone crusher is suitable for crushing iron ore, copper ore, limestone, granite, basalt, diabase and other fine crushing and super fine crushing hard rock.

Application

       Cone crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry and many other areas. The type of crushing chamber is determined by the use of ore: standard type is suitable for medium crushing, medium type is suitable for fine crushing, short type is suitable for ultra-fine crushing.

Advantages and Features




1, crushing strength, high efficiency;
       2, with adjuster, can quickly adjust the size of crushing discharge particle size;
       3, the work is relatively stable, the vibration is light, the basic weight of the machine equipment is small;
       4, with a complete lubrication system, when the temperature is too high or the flow rate is too slow will automatically shut down;
       5. Compared with other crushing equipment, it has the advantages of uniform particle size, low energy consumption and high crushing efficiency.

Product Structure

The structure of cone crusher is mainly frame, horizontal axis, dynamic cone, balance wheel, eccentric sleeve, broken wall (fixed cone), broken wall (dynamic cone), hydraulic coupling, lubrication system, hydraulic system.

In the working process of cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and swings under the force of the eccentric sleeve. The section of the moving cone close to the static cone becomes the crushing chamber, and the material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone leaves the section, the part has been broken to the required particle size of the material falls under the action of its own gravity, discharged from the bottom of the cone.


Technical Specification

型号 破碎机直径(mm) 给料口尺寸(mm) 最大给料粒度(mm) 排矿口调整范围(mm) 电机功率(kw) 生产能力(t/h) 机重(不含电机)(kg)
PYB-900 900 135 110 15~50 55 50~90 9600
PYB-1200 1200 170 145 20~50 110 110~16 824700
PYB-1750 1750 250 215 25~-60 155 280~480 50
PYB-2100 2100 350 300 30~60 280 500~800 71200
PYB-2200 2200 350 300 30~60 280 500~1000 80000
PYB-900 900 70 60 8~20 55 20~65 9600
PYB-1200 1200 115 100 8~25 110 42~135 25000
PYB-1750 1750 215 180 10~30 155 115~320 50300
PYB-2200 2200 275 230 10~30 280 200~580 84000
PYB-900 900 50 40 3~13 55 15~50 9700
PYB-1200 1200 60 50 3~15 110 18~105 25300
PYB-1750 1750 100 85 5~15 155 75~230 50500
PYB-2200 2200 130 100 5~15 280 125~350 85000
